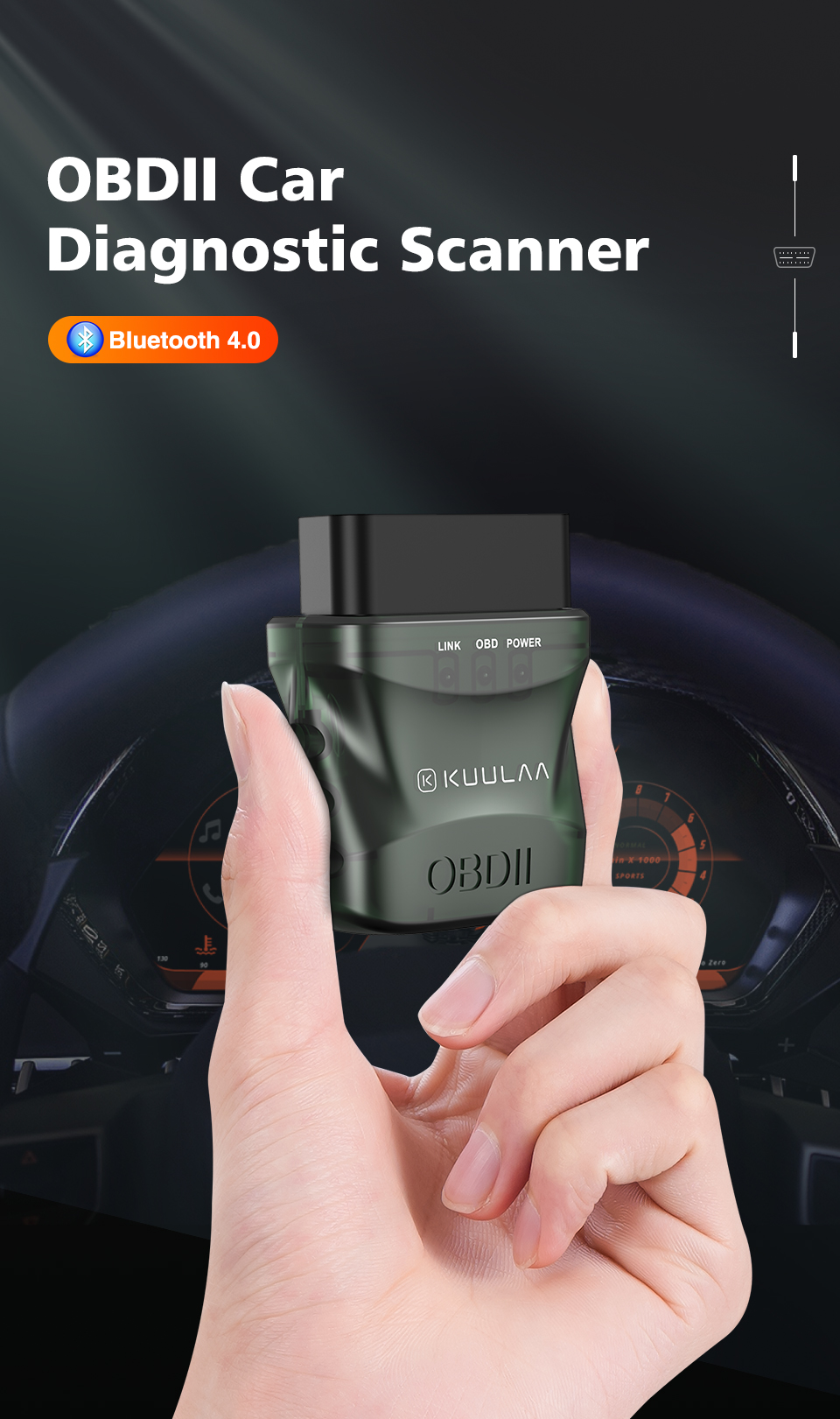

ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool

Name: ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool
Brand: uberautos247.com
SKU: 3256804860799989
Price: 10.00 GBP
Availability: InStock

Rated 4.5 out of 5

5 orders

$13.33

SKU:

3256804860799989

Category:

Car Care

Buyer protection

Safe shopping

Easy returns and refunds

Free shipping worldwide

Product details

The OBD2 Scanner Oscllator frequency is 24mhz.

The product is not PIC18F25K80, it support ATPPS commands and can be used with FORSCAN, but it does not guarantee that all functions on this software can be used. (FORSCAN is a software specially used to change some ECU parameters of Ford cars.)

KUULAA ELM327 V1.5 Bluetooth 4.0 ELM 327 OBD2 Scanner Diagnostic Adapter Scan Tool OBD OBDII Code Reader For iOS Android Windows

ELM327 V1.5 BT4.0 is mainly used to read the data of car engine and emissions, diagnostic car engine trouble, and erase trouble codes. It is small size, highest chip integration, Passed CE, FCC, and RoHS certification.

ELM327 V1.5 BT4.0 Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear the error codes and turn off the MIL (“Check Engine” indicator)
Displays current sensor data, including:
Engine speed per minute (RPM)
Calculated load value
Coolant temperature
Fuel system status
Vehicle speed
Short-term fuel condition
Long-term fuel condition
Intake manifold pressure
Injection advance time
Intake air temperature
Air Flow Rate
Absolute throttle position
Oxygen probe voltage associated with short-term fuel status
Fuel system status
Fuel pressure
There are many other data available for fuel consumption monitoring …

Software Platforms

1. Compatible software
Window versions: ScanMaster-ELM, ScanTool.net, PCMSCAN, etc.
Android version: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD, etc.
Symbian version: OBDScope. 2.
2. Compatible Platforms
Software support platform: Windows XP, Windows 7/8/10, Android, Symbian, etc.

Support Protocol:

SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPD (10.4 Kbaud)
ISO 9141-2(5 baud init,10.4 Kbaud)
ISO 14230-4 KWP ( 5 baud init,10.4 Kbaud)
ISO 14230-4 KWP （fast init,10.4 Kbaud）
ISO 15765-4 CAN (11bit ID,500 Kbaud)
ISO 15765-4 CAN (29bit ID,500 Kbaud)
ISO 15765-4 CAN (11bit ID,250 Kbaud)
ISO 15765-4 CAN (29bit ID,250 Kbaud)

Bluetooth 4.0 OBDII Car Diagnostic Scanner

Diagnose Engine Trouble Code
Clear Engine Trouble Code
Car Information Reading
Work After Connect Car
Supports Almost Kinds Of Cars
Small & Convenient

KUULAA ELM327 V1.5 OBD2 Scanner Bluetooth 4.0 OBD 2 Car Diagnostic Tool for IOS Android PC ELM 327 Scanner OBDII Reader

Product Function

Dashboard Live Date All Sensors
Diagnostic Trouble Codes Freeze Frame
Noncontinuous Monitors Acceleration Tests
Emission Tests Data Recording

Are you experiencing these problems?

New driver
4s shops are expensive to maintain
Check for breakdowns before traveling

Read/Clear error diagnostic code

Engine

Diagnosis vehicle health

Real-time monitor vehicle ,display the diagnostic values of various vehicle.（Database has more than 3000 code definitions)
Read error diagnostic code
Clear error code
Display engine revolutions
Coolant temperature
Fuel system status
Short-term fuel condition
Fuel pressure
Long-term fuel situation
Intake manifold pressure
Fuel injection advance time
Air temperature
Air velocity
Fuel system status
Fuel consumption monitoring etc.

Detect fuel consumption and mileage

Real-time display of vehicle fuel quantity, vehicle speed, rotation speed, mileage, temperature, air pressure and other data, master all vehicle data.

Bluetooth-mobile phone connection

Support ios/Android/Windows…turn on the bluetooth of mobile phone, search for OBDII and use it
*Download APP is required

Link location of OBD interface

Most of the connectors are under the dashboard.（Check the vehicle manual, if don’t find.）
Area A: VW、 Ford、Toyota、Hyundai、 Citroen、 BMW、etc./Most cars.
Area B: Honda, Lexus,etc.
Area C: Dongfeng Citroen,etc.
Area D/E : A few cars…

Details Show

Exquisite workmanship, personality and fashion
Non-slip design
Bottom LED light
16-pin OBD connector
ABS fireproof material

Product parameters

Brand:KUULAA
Name:Bluebooth OBDII Car Diagnostic Scanner
Model:KL-DW006
Bluetooth version:4.0
Working voltage:12V
Working current:32mA
Operating temperature:-40~80℃
Storage temperature:-30~80℃
Main chip: mm32l073
Software platform:support Android/Windows/IOS…
Product weight:24g
Product size:57*24.2*46.2mm
Color:Black-green
Package Included:1x Auto Scanner

Packing list

OBDII Diagnostic Scanner *1
User Manual*1

Connection steps

Item specifics

Special Features	Bluetooth
Software Update	Yes
Software Version	Latest Version
Hardware Version	V1.5
Brand Name	kuulaa
Item Type	Code Readers & Scan Tools
Certification	CE,FCC,RoHS
