Product Description
VEVOR Push Beam Trolley
This brand new Ton Push Beam Trolley is adjustable to fit standard or wide flange I-beam tracks. It is designed to be attached to the flange of steel beams or gantry cranes to act as a lifting point for chain blocks, hoists, and lifting tackle. The push beam trolley allows you to move up to 1100 lbs with a simple push!
- Solid Steel Construction
- Excellent Loading Capacity
- Stable & Safe
- Adjustable I-beam Flange Width
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR’s products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Key Features
Steel Material
All-steel construction with the powder-coated finish is the corrosion resistance and has long service time.
Max. Working Load
It can load 0.5 -3.0 t heavy objects, which extend its usage range.
Four Sturdy Wheels
Hardened four wheels have high wear resistance and excellent mechanical properties.
Adjustable I-beam Width
The pre-lubricated sealed bearing is for long life and reduced maintenance.
Safety Design
The lock-nut and the lifting ring can work with most of lifting tools with stability and safety.

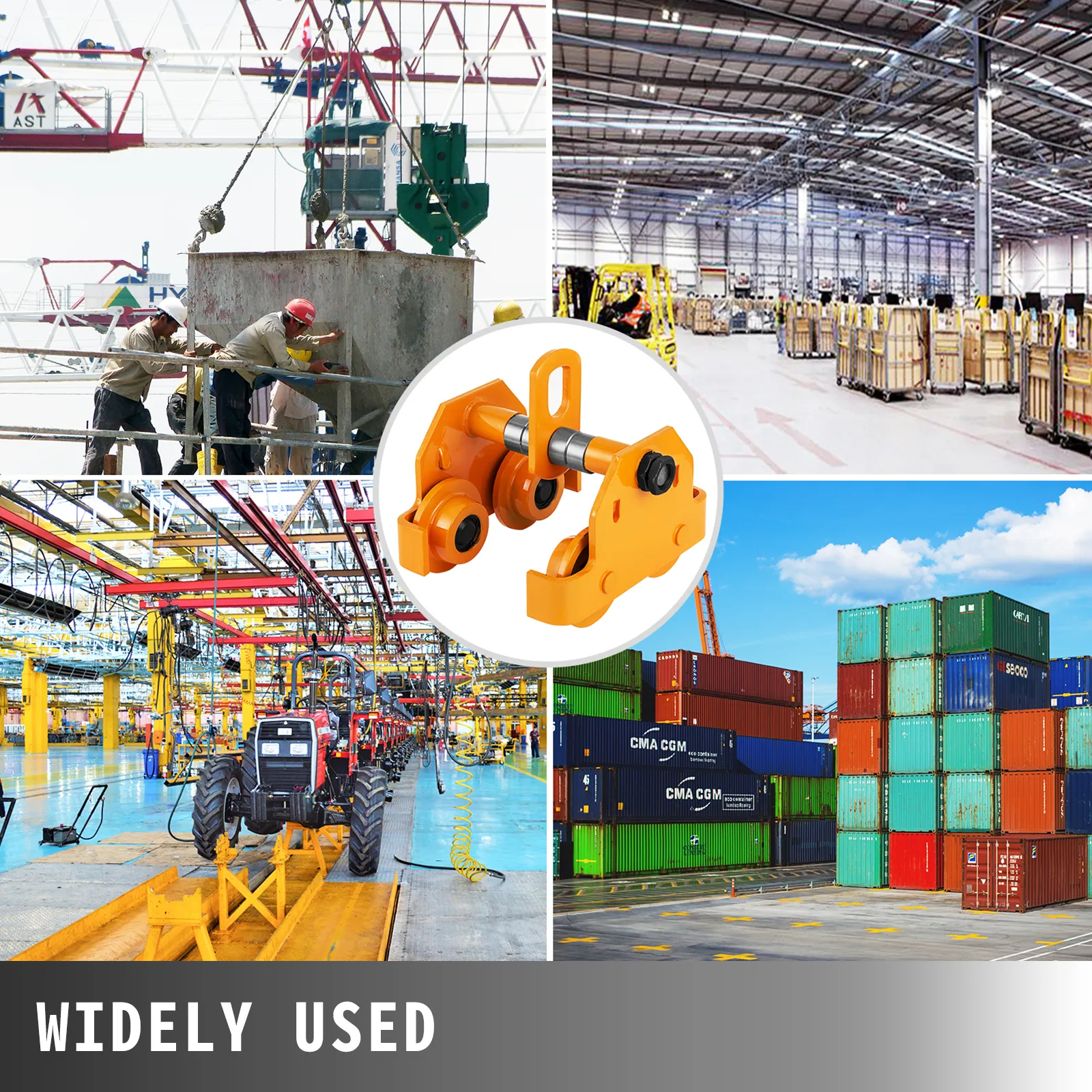

Widely Used
It is an ideal material handling tool for warehouses, garages, and other industrial areas.
0.5 Ton Push Beam Trolley
- Material: Steel
- Weight Capacity: 1100 lbs(0.5 t)
- Minimum Curved Track Radius: 3′ (1 m)
- I-beam Flange Width: 2.5”-5.5”/6.35cm-13.97cm
- Packing Size: 8.5″ x 7.6″ x 5.7″(21.6×19.3×14.5 cm)
- Packing Weight: 17 lbs(7.7 kg)
- Color: Yellow
Package Content
- 1 x Push Beam Trolley
1 Ton Push Beam Trolley
- Material: Steel
- Weight Capacity: 2200 lbs (1 ton)
- Minimum Curved Track Radius: 3′ (1 m)
- I-beam Flange Width: 2.5”-5.5”/6.35cm-13.97cm
- Wheel Dimensions: 2-3/4″(7 cm) diameter with 3/8″(0.95 cm) wall
- Overall Size: 9″ x 9″ x 8.5″(23x23x22 cm)
- Packing Weight: 26.2 lbs(11.9 kg)
Package Content
- 1 x Push Beam Trolley
2 Ton Push Beam Trolley
- Material: Steel
- Weight Capacity: 4400 lbs(2 ton)
- Minimum Curved Track Radius: 3′ (1 m)
- I-beam Flange Width: 2.5”-5.5”/6.35cm-13.97cm
- Wheel Dimensions: 4-3/4″(12 cm) diameter with 3/8″(0.95 cm) wall
- Packing Weight: 41 lbs(18.5 kg)
Package Content
- 1 x Push Beam Trolley
3 Ton Push Beam Trolley
- Material: Steel
- Weight Capacity: 6600 lbs (3 ton)
- Minimum Curved Track Radius: 3′ (1 m)
- I-beam Flange Width: 2.5”-5.5”/6.35cm-13.97cm
- Packing Size: 13-4/5″ x 13″ x 9-3/10″ (35x33x24 cm)
- Packing Weight: 64 lbs (29 kg)
Package Content
- 1 x Push Beam Trolley
Features & Details
- 【SOLID STEEL CONSTRUCTION】- The push beam trolley is crafted with heavy-duty steel for ultimate durability. The solid steel construction has a durable powder-coated finish for added strength that you can depend on during heavy lifting.
- 【EXCELLENT LOADING CAPACITY】- We understand that heavy loads can make daily routine hard to carry out. That why we came up with our hoist, which has a maximum lift of 1100 lbs to make working with heavy load an enjoyable process.
- 【STABLE & SAFE】- Your safety comes first; that why our trolley comes with sturdy lock-nut and lifting ring to ensure you are always safe while operating it. It is stable enough in your workplace.
- 【ADJUSTABLE I-BEAM FLANGE WIDTH】- The push beam trolley comes with a sealed bearing to adjust the width to fit standard or wide flange I-beam track. . The Adjustment Washers is included.
- 【WIDE APPLICATION AREA】- It can be widely used in factories, mines, docks, warehouses, construction sites, etc. for the installation of machinery, lifting goods, equipment maintenance.
